SAM-1000Z MAX Mini Skid Steer Loader

Loaders

Be the first to leave a review.

The SAM-1000Z MAX delivers 1,100 lbs of lifting capacity in a narrow 41 inch frame. Built with Kubota Tier 4 power for maximum reliability.

  • Rated Power: 25HP
  • Engine: 25hp diesel 3-cyl, liquid-cooled
  • Rated Operating Capacity: 1,100 lbs (500 kg)
  • Speed (fwd/rev): 4.94mph (7.95 km/h)
SAM-1000Z MAX compact loader displaying the 9 inch wide tracks and 11 inch ground clearance.

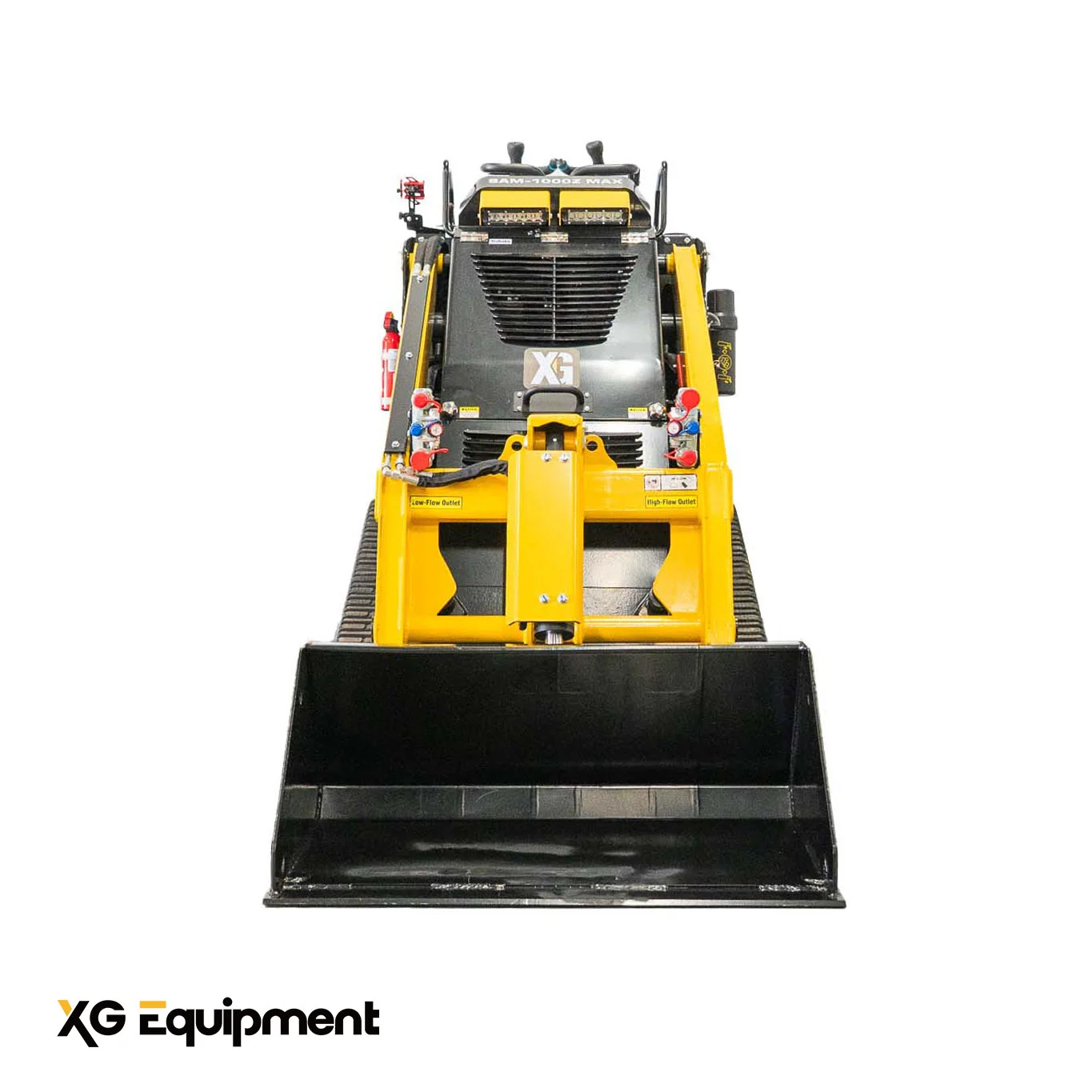

XG Equipment SAM-1000Z MAX mini skid steer loader with 1,100 lbs of lifting capacity

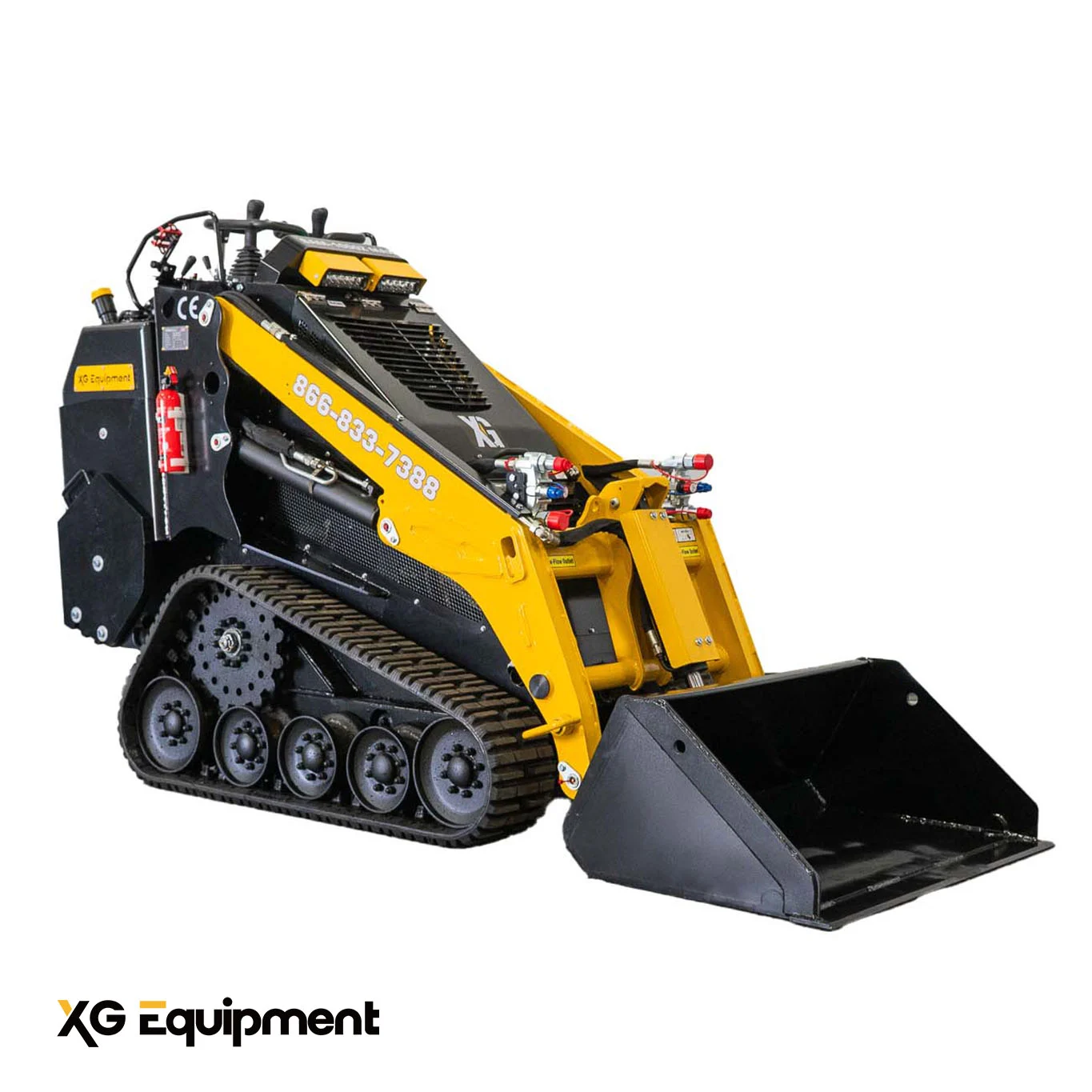

SAM-1000Z MAX mini skid steer loader with bucket and heavy-duty tracks

SAM-1000Z MAX Mini Skid Steer Loader

Loaders

The SAM-1000Z MAX delivers 1,100 lbs of lifting capacity in a narrow 41 inch frame. Built with Kubota Tier 4 power for maximum reliability.

  • Rated Power: 25HP
  • Engine: 25hp diesel 3-cyl, liquid-cooled
  • Rated Operating Capacity: 1,100 lbs (500 kg)
  • Speed (fwd/rev): 4.94mph (7.95 km/h)

Original price was: $25,600.00.Current price is: $22,999.00.

10% Off

Be the first to leave a review.

Consider this upgrade

Features

The VMENG SAM 1000Z Max is a compact powerhouse designed for contractors and property professionals who need reliable performance, smooth control, and durable components in a tight footprint. By pairing a proven Kubota Tier 4 diesel engine with a narrow 41-inch frame, this machine delivers dependable daily productivity while easily handling heavy materials in confined spaces where larger equipment cannot operate.

  • Commercial-Grade Power: Equipped with a Kubota D1105 low-RPM, high-torque diesel engine that provides dependable performance, fuel efficiency, and long service life for demanding job sites.

  • Premium Hydraulic Drive System: Built with Bondioli & Pavesi variable displacement piston drive pumps, Poclain high-torque piston drive motors, and Wanye gear pumps, delivering smooth, responsive power and professional-grade durability.

  • Heavy Lifting Capability: Features an 1,100 lb rated operating capacity, making it ideal for handling pallets, soil, mulch, debris, and construction materials with confidence.

  • Versatile Hydraulic Performance: Dual auxiliary hydraulic system delivers 12 GPM high-flow capability, allowing operators to run demanding attachments such as trenchers, brush cutters, augers, and soil conditioners.

  • Silky-Smooth Pilot Controls: Hydraulic pilot controls provide precise, effortless operation for both drive and boom functions, improving productivity while reducing operator fatigue.

  • Reinforced Undercarriage Stability: Designed with double idlers and rollers to provide enhanced lateral support and help prevent track derailment when operating on slopes or uneven terrain.

  • Efficient Power Delivery: The combination of the low-RPM, high-torque Kubota engine and Poclain piston drive motors delivers strong pushing and lifting performance that feels more powerful than typical machines in the 25 HP class.

  • Dual Hydraulic Coupler System: Includes two sets of Faster hydraulic coupler blocks—one dedicated to low-flow secondary functions (such as angling a soil conditioner), while the main coupler supplies 12 GPM flow to attachments like brush cutters or mulching heads.

  • Standard Attachment Compatibility: Uses the Common Industry Interface (CII), allowing you to operate a wide variety of rental attachments or use equipment you already own.

Why the SAM-1000Z MAX makes sense for your fleet

Big capacity in a small footprint

Efficiency on a jobsite often comes down to accessibility. The SAM-1000Z MAX is only 41 inches wide, allowing you to navigate narrow residential gates or tight commercial alleys while still moving over half a ton of material at a time.

We lead with the engine because it is the heart of your productivity. The Kubota D1105 is a world class, water cooled diesel engine known for its longevity and easy parts availability; this ensures your machine stays on the job and out of the shop.

VMENG has focused on commercial machinery since 2003. The SAM-1000Z MAX reflects that history through a robust 3,333 lb operating weight and an 11 inch ground clearance, providing the stability and durability required for rugged landscaping and construction environments.

About VMENG Machinery

Since 2003, VMENG Machinery has been committed to engineering reliable, efficient, and innovative mini loaders. We prioritize commercial grade performance and cost effectiveness to help businesses in construction, agriculture, and landscaping succeed. Our goal is to provide machinery that acts as a true asset to your productivity.

Specifications

Engine KUBOTA D1105
Rated Power 25 hp
Fuel Diesel
Engine Cooling Water-cooled 4-cycle
Number of cylinders 3
Fuel tank capacity 9.25 gal (35L)
Rotating speed 3,000 RPM
Total Displacement 68.5 cu.in.
Wheelbase 42.7 in (1,085 mm)
Track Width STD. 9 in (230 mm)
Rated Operating Capacity 1,100 lbs (500 kg)
Tipping Load 3,143 lbs (1,426 kg)
Travel Speed (Fwd/Rev) 4.94 mph (7.95 km/h)
Attachment Mounting System CII (Common Industry Interface)
